Kern River Eastridge CCS

"The Kern River Eastridge Carbon Capture & Sequestration (CCS) Project, led by Chevron U.S.A. Inc., is a Class VI CO₂ sequestration project proposed for the Kern River Oil Field in Kern County, California, located about 10 miles northeast of Bakersfield. The project is designed to inject 265,000 to 455,000 metric tons of CO₂ per year for a 20-year period into the Vedder Sand, a deep Oligocene sandstone formation with strong porosity and permeability. Over its lifetime, the project expects to store 6.82 million metric tons of CO₂, followed by 50 years of post-injection monitoring. Chevron has applied for four Class VI injection wells, two initial injectors and two contingent wells in case of abandonment, and will manage reservoir pressure with two to four water-production wells. The Vedder Sand is sealed by the thick Freeman–Jewett Silt, providing strong long-term containment. Extensive subsurface characterization, including a 20-square-mile 3D seismic survey, analysis of 70 legacy wells, and core sampling confirms the site’s suitability for secure storage. Chevron owns 97% of the surface and mineral rights within the project area and is securing easements for the remainder.

City

Oildale

Country

United States of America

Region

us

Project name

Kern River Eastridge CCS

Overview

Full Project Overview

All key information and technical data related to this project

Overview

Company:
Project name:
Kern River Eastridge CCS
Project categories:
class_vi
City:
Oildale
County:
Kern County
State:
California
Country:
United States of America
Region:
United States
EPA region:
9
Applicant name:
Chevron U.S.A., Inc.
Status:
Pending
Well applications:
4
Injection rate (Mt/year):
530,000
Total storage capacity (Mt):
10,600,000
Announcement date:
2023-12-15
Data

Wells

Data for injection rates, perforation, and other well-related metrics.

MC19001INJ

Injection rate (Mt / year)
132,500
Injection years
20

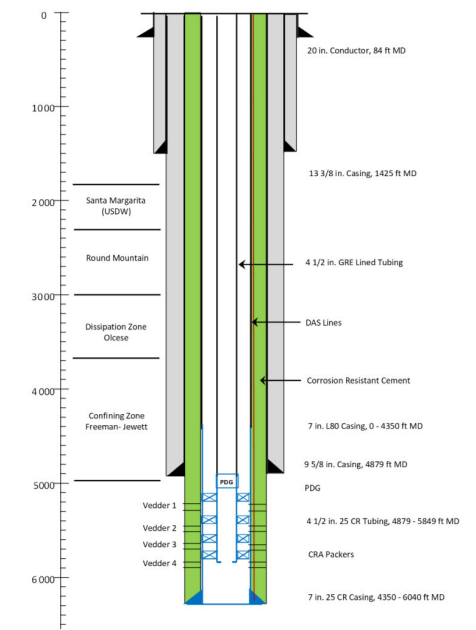

Wellbore schematic
Perforation intervals (feet)
5036-5096, 5300-5360, 5574-5634, 5843-5903
Well class
Injector

ANO9004INJ

Injection rate (Mt / year)
132,500
Injection years
20
Wellbore schematic
Perforation intervals (feet)
5357-5417, 5609-5669, 5864-5924, 6168-6228
Well class
Injector

MC19002INJ (Contingent Injector)

Injection rate (Mt / year)
132,500
Injection years
20

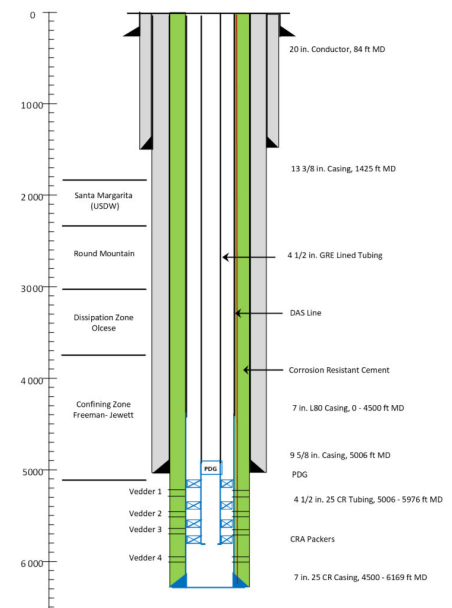

Wellbore schematic
Perforation intervals (feet)
5311-5371, 5564-5624, 5819-5879, 6121-6181
Well class
Injector

ANO9005INJ (Contingent Monitor)

Injection rate (Mt / year)
132,500
Injection years
20

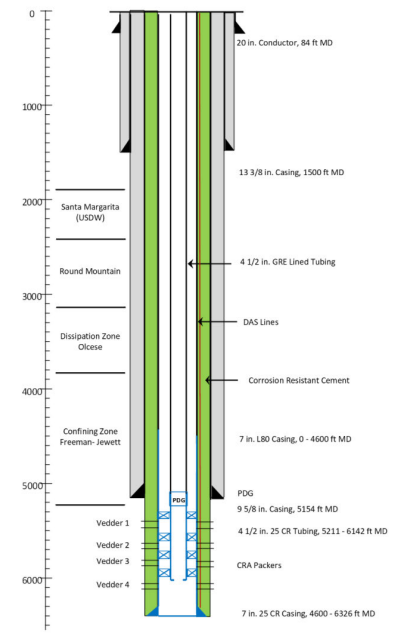

Wellbore schematic
Perforation intervals (feet)
5161-5221, 5427-5487, 5690-5750, 5970-6030
Well class
Injector
Data

Geology

Subsurface data for carbon storage.

Kern River Oil Field: Vedder Sand

* Graph available
Gross thickness (ft)
1,050
Depth TVD (ft)
3,910
Porosity
29.%
Permeability (md)
253
Datum Depth (ft)
4,293
Temperature (°F)
460
Pressure (psia)
1,937
Salinity (ppm)
10,000
Krw @ Sgr
1
KrCO₂ @ Swr
0.7
Water exponent
3.5
CO₂ exponent
3.5
Residual water saturation
0.301
Model
Corey-Brooks
Relative Permeability Graph
Download

Permitted Documents

Official approval, consent, and compliance documents issued by authorities, confirming the project is authorised to proceed.

Permitted files
03-25-2024_Chevron_Kern_River_Eastridge_CCS_-_Area_of_Review__Corrective_Action_Plan.pdf
03-25-2024_Chevron_Kern_River_Eastridge_CCS_-_Financial_Responsibility_Insurance.pdf
03-25-2024_Chevron_Kern_River_Eastridge_CCS_-_Financial_Responsibility.pdf
03-25-2024_Chevron_Kern_River_Eastridge_CCS_-_Injection_Well_Construction_Plan.pdf
03-25-2024_Chevron_Kern_River_Eastridge_CCS_-_Plugging_Plan.pdf
03-25-2024_Chevron_Kern_River_Eastridge_CCS_-_Post-Injection_Site_Care_and_Site_Closure_Plan.pdf
03-25-2024_Chevron_Kern_River_Eastridge_CCS_-_Preoperational_Testing.pdf
03-25-2024_Chevron_Kern_River_Eastridge_CCS_-_Project_Narrative.pdf
03-25-2024_Chevron_Kern_River_Eastridge_CCS_-_Testing__Monitoring_Plan.pdf
03-26-2025_Chevron_Kern_River_Eastridge_CCS_-_Area_of_Review__Corrective_Action.pdf
03-26-2025_Chevron_Kern_River_Eastridge_CCS_-_Financial_Responsibility.pdf
03-26-2025_Chevron_Kern_River_Eastridge_CCS_-_Plugging_Plan.pdf
03-26-2025_Chevron_Kern_River_Eastridge_CCS_-_Post-Injection_Site_Care_and_Site_Closure_Plan.pdf
03-26-2025_Chevron_Kern_River_Eastridge_CCS_-_Pre-operational_Testing.pdf
03-26-2025_Chevron_Kern_River_Eastridge_CCS_-_Project_Narrative.pdf
03-26-2025_Chevron_Kern_River_Eastridge_CCS_-_RR.pdf
03-26-2025_Chevron_Kern_River_Eastridge_CCS_-_Surveillance_Plan.pdf
03-26-2025_Chevron_Kern_River_Eastridge_CCS_-_Testing__Monitoring_Plan.pdf
03-26-2025_Chevron_Kern_River_Eastridge_CCS_-_Well_Construction_and_Stimulation.pdf
05-09-2024_Chevron_Kern_River_Eastridge_CCS_-_Area_of_Review__Corrective_Action_Plan.pdf
05-09-2024_Chevron_Kern_River_Eastridge_CCS_-_Emergency__Remedial_Response_Plan.pdf
05-09-2024_Chevron_Kern_River_Eastridge_CCS_-_Injection_Well_Construction_Plan.pdf
05-09-2024_Chevron_Kern_River_Eastridge_CCS_-_Post-Injection_Site_Care_and_Site_Closure_Plan.pdf
05-09-2024_Chevron_Kern_River_Eastridge_CCS_-_Project_Narrative.pdf
05-09-2024_Chevron_Kern_River_Eastridge_CCS_-_Testing__Monitoring_Plan.pdf
